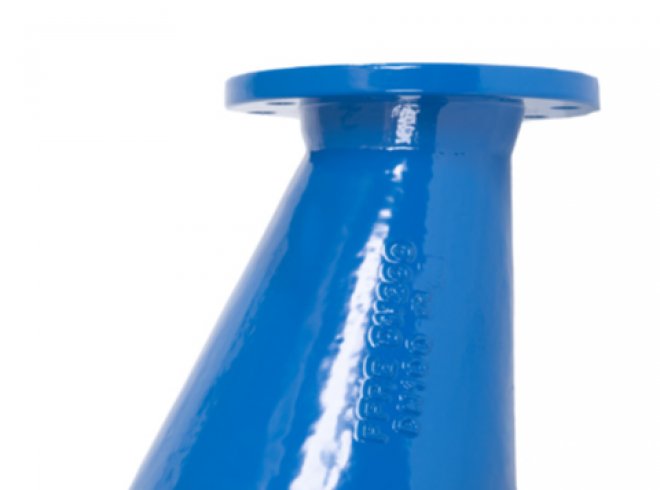

Ductile iron flanged pipe fitting

Body: Ductile iron grade 500-7/450-12 in accordance with ISO 1083.

Coating: cement mortal lining as per ISO4179 ,zinc primer and bitument painting according to ISO8179

epoxy (with WARS for epoxy powder) coated in blue, black, red or according to customers' requirements.


Material:Ductile Cast Iron GGG500-7 OR GGG450-12, ASTM A536
Standard:ISO2531, BS EN545, EN598,EN12842, AWWA C110&C153
Pressure:PN10, PN16, PN25,ANSI 125
Specification:DN50 to DN2000, K12/14
Joints type:Flange, Typon joint(push on joint); Bolted Gland K type Joint
Application:Water supply project, drainage, sewerage, Irrigation ,water pipeline
Surface Inside:Portland Cement mortar lining, bitumen paint, epoxy paint, powder
Surface Outside:Epoxy paint, bitumen paint, epoxy powder coating
Accessories:Gaskets, bolts and nuts available upon request
Inspection:SGS, BV, or other third party inspection
Sample: Sample for free, but buyer meed pay for the freight charge
Payment:30% TT upon placing order and 70% TT when see copy of B/L
Packing methods:Wooden case/pallet with plastic layer, or as per customer's requirements
