Clamp Pressure Sonic Pipe

  • Parameter

Product Type:

Clamp Pressure Sonic Pipe



Material:

Q195 ，Q235，Q345,20#

OD:

50mm,57mm，60mm,100mm,112mm

Wall Thickness:

1-2mm

Length:

5.8m or 6m ,9m etc

Surface Treatment:

Nature or oiled

End finish:

Plain End

Certification:

Testing report, ISO

  • Advantages

1.Fast and easy installation by worker.

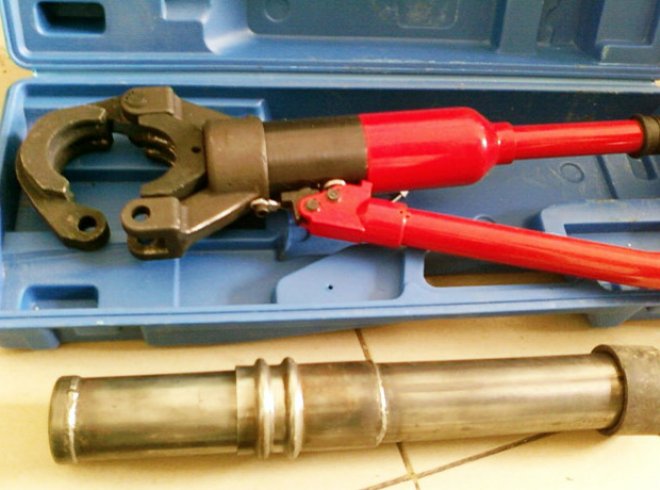

2.Clamped by pressure clamp.
3.No welding required at job site.

Installation

1. Install a bottom cap onto the first sonic tube.

2. Clamped by pressure clamp.

Applications

The tubes are usually attached to the reinforcement cage along the full length of the shafts. After concrete has been poured, the tubes are filled with water. In CSL, a transmitter emits an ultrasonic signal in one tube and the signal is sensed some time later by the receiver in another sonic tube. Poor concrete between the sonic tubes will delay or disrupt the signal. The engineer lowers the probes to the bottom of the shaft and moves the transmitter and receiver upward, until the entire shaft length is scanned. The engineer repeats the test for each pair of tubes. The engineer interprets data in the field and later reprocesses it in the office.

Package and Shipping
